- Product Data
Product number 130344

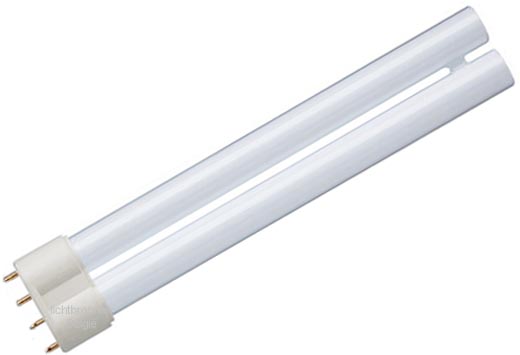

Full product name PL-L 18W/10/4P 1CT
Short product name PL-L 18W/10/4P 1CT/25
Bar code on pack 8711500260185
Bar code on case 8711500260192
Logistics code(s) 927903001007
eop_net_weight_pp 60.900 gr
- General Characteristics
Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2xT16
Main Application Reprography
Useful Life 5000 hr
Life to 50% failuresEM 15000 hr
- Electrical Characteristics
Watts 18 W
Lamp Wattage Technical 18 W
Lamp Voltage 58 V
Lamp Current 0.375 A
- Light Technical Characteristics
Color Code 10
Color Designation (text)
Ultra Violet A
Chromaticity Coordinate X 228 -
Chromaticity Coordinate Y 215 -
Depreciation 5000 hours 35 %
Depreciation 2000 hours 20 %
- UV-related Characteristics
UV-A Radiation
100hr (IEC)
3.5 W

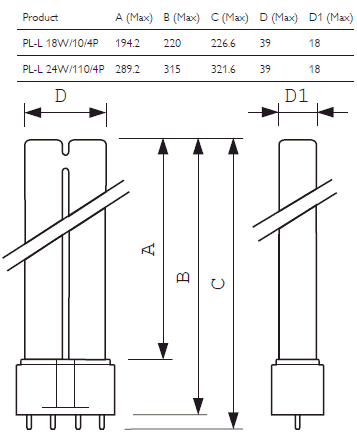

- Product Dimensions
Base Face to Base
Face A
195 mm
Insertion Length B 220 mm
Overall Length C 225 mm
Diameter D 38 mm
Diameter D1 18 mm
