HF-S selectaluma 118/136 TL-D II 220-240V
  • Beschrijving
  • Meer

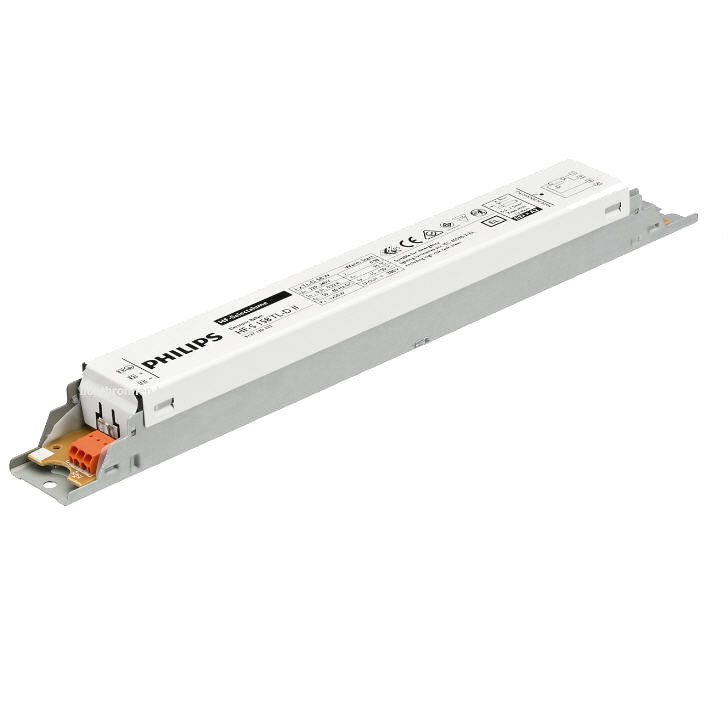

Philips HF-P III VSA HF-S 1x18W of 1x36W

General Information
Application Code
II
Type Version
mk1
Lamp Type
TL-D
Number of Lamps
1 piece/unit
Number of Products on MCB (16A Type B) (Nom)
28
Automatic Restart
Yes
Input Voltage
220 to 240 V
Input Frequency
50 to 60 Hz
Operating Frequency (Nom)
45 kHz
Crestfactor (Nom)
1.7
Power Factor 100% Load (Nom)
0.98
Preheat Time
1.6 s
Mains Voltage Performance (AC)
202-254V-8%-+6%
Mains Voltage Safety (AC)
198-264V-10%-+10%
Earth Leakage Current (Max)
0.5 mA
Inrush Current Width
0.35 ms
Ballast Factor (Nom)
1.05
Power Losses (Nom)
3.8 W
Inrush Current Peak (Max)
18 A
Connector Type Input Terminals
WAGO 744 connector
Cable Capacity Output Wires Mutual (Max)
200 pF
Connector Type Output Terminals
WAGO 744 connector  [ Suitable for manual wiring]
Cable Length Hot Wiring
0.75 m
Wire Striplength
8.0-9.0 mm
Dual Fixture Master/Slave
Possible, lamp wires 2m max. length  [ Master/Slave operation possible]
Input Terminal Cross Section
0.50-1.50 mm²
Output Terminal Cross Section
0.50-1.50 mm²
Cable Capacity Cold Output Wires - Earth (Max)
200 pF
Cable Capacity Hot Output Wires - Earth (Max)
200 pF
Rated Ballast-Lamp Power
36 W
Rated Lamp Power on TL-D
36 W
System Power on TL-D
38.8 W
Lamp Power on TL-D
35 W
Power Loss on TL-D
3.8 W
T-Ambient (Max)
55 °C
T-Ambient (Min)
-20 °C
T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Case Lifetime (Nom)
75 °C
T-Case Maximum (Max)
75 °C
Housing
L 280x30x28
Nominal Light Output After 60 Seconds
100% of EBLF
Normal Operating Voltage (DC)
220-240 V
Battery Voltage Guaranteed Operation
176-275 V
Battery Voltage Guaranteed Ignition
186-275 V
Emergency Ballast Lumen Factor (EBLF) (Nom)
100 %
Nominal Light Output After 5 Seconds
50% of EBLF
Energy Efficiency Index
A2 BAT
IP Classification
IP 20  [ Ingress Protection 20]
EMI 9 kHz ... 30 MHz
EN55015
Vibration Standard
IEC68-2-6 F c
Bumps Standard
IEC 68-2-29 Eb (10G/16ms)
Approval Marks

F-Marking

CE marking

ENEC certificate

CCC certificate

C-Tick certificate

PSB certification

TISI marking

SIRIM approval

CB Certificate

CCC certificate

VDE-EMV certificate

Hum And Noise Level
< 30 dB(A)
Full product code
872790090551900
Order product name
HF-S 118/136 TL-D II 220-240V 50/60Hz
EAN/UPC - Product
8711500999290
Order code
913713032166
Numerator - Quantity Per Pack
1
Numerator - Packs per outer box
12
Material Nr. (12NC)
913713032166
Net Weight (Piece)
0.200 kg

Ook te gebruiken ter vervanging voor Philips hf selectaluma , hf-s 118 hf-s 136

hf selectaluma
Philips
8727900905519
