Osram Decostar 35 Titan 20Watt 12Volt GU4 10 graden
  • Meer

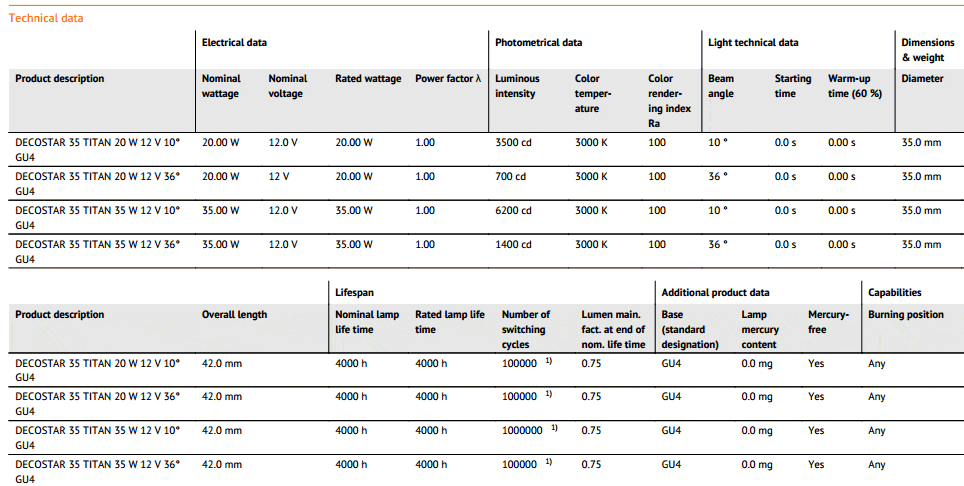

Electrical data

Nominal wattage 20.00 W
Nominal voltage 12.0 V
Rated wattage 20.00 W
Power factor λ 1.00

Photometrical data

Nominal useful luminous flux 90° 220 lm
Luminous intensity 3500 cd
Color temperature 3000 K
Light color as per EN 12464-1 Warm White
Color rendering index Ra 100
Rated useful luminous flux 90° 220 lm

Light technical data

Beam angle 10 °
Starting time 0.0 s
Warm-up time (60 %) 0.00 s

Dimensions & weight

Diameter 35.0 mm
Length 40.0 mm
Overall length 42.0 mm
Outer bulb MR35
Maximum diameter 35.0 mm

Lifespan

Nominal lamp life time 4000 h
Rated lamp life time 4000 h
Number of switching cycles 100000
Lumen main.fact.at end of nom.life time 0.75

Additional product data

Base (standard designation) GU4
Lamp mercury content 0.0 mg
Mercury-free Yes

Capabilities

Burning position Any
Dimmable Yes

Certificates & standards

Energy efficiency class B
Energy consumption 22 kWh/1000h

Country specific categorizations

ILCOS HRGS//UB-20-12-GU4-35/10
Order reference 46890 SP 20W 12
Philips
4050300529301
