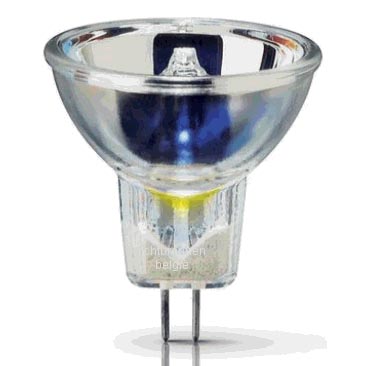

13165 35W GZ4 14V Focusline Halogen Dental Hardening
  • Beschrijving
  • Meer

Vermogen 35 Watt, Lamphouder GZ4, Spanning 14 Volt, Type 13165 Lichtstroom, Kleurweergaven 100 Ra, Levensduur 35 Uur, Lengte 37 mm, Breedte 25 mm, Brandstand Universeel

• Light Technical Characteristics
Color Rendering Index100 Ra8
Color TemperatureTechnical 3400 K
Curing Power Area 400-500nm 330 mW/cm2
• Electrical Characteristics Watts 52 W Voltage 10 V
Dimmable Yes
• Luminaire Design Requirements
Pinch Temperature 400 (max) C
Bulb Temperature 900 (max) C
Working Distance WD 26 mm


• Product Dimensions
Overall Length C 37 (max) mm Diameter D 35 (max) mm Filament Dimensions (WxH) [mm]
-
• Product Data
Product number 160945
Full product name 13298 52W GZ4 10V 1CT
Short product name 13298 52W GZ4 10V 1CT/10X5F
Pieces per Sku 1
eop_pck_cfg 10X5F
Skus/Case 50
Bar code on pack 8711500410214
Bar code on intermediate pack 8711500420435
Bar code on case 8711500420442
Logistics code(s) 924008915804
eop_net_weight_pp 12.200 gr

- General Characteristics

Philips Code 13165

ANSI Code -

J Code -

LIF Code -

Cap-Base GZ4

Bulb R35

Bulb Material Quartz-UV Open

Reflector Finish Smooth Dichroic

Filament Shape -

Operating Position any

Main Application Dental Hardening

Life to 50% failures 50 hr

- Light Technical Characteristics

Color Rendering

Index

100 Ra8

Color Temperature

Technical

3400 K

Curing Power Area

400-500nm

160 mW/cm2

- Electrical Characteristics

Watts 35 W

Voltage 14 V

Dimmable Yes

- Luminaire Design Requirements

Pinch Temperature 400 (max) C

Bulb Temperature 900 (max) C

Working Distance

WD

21 mm

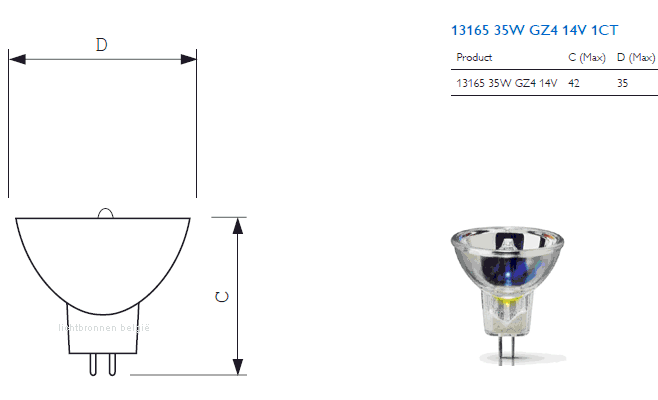

- Product Dimensions

Overall Length C 42 (max) mm

Diameter D 35 (max) mm

Filament Dimensions

(WxH) [mm]

-

- Product Data

Product number 442954

Full product name 13165 35W GZ4 14V 1CT

Short product name 13165 35W GZ4 14V 1CT/10X5F

Pieces per Sku 1

eop_pck_cfg 10X5F

Skus/Case 50

Bar code on pack 8711500409768

Bar code on intermediate

pack

8711500419323

Bar code on case 8711500419316

Logistics code(s) 923889018304

eop_net_weight_pp 23.600 gr
