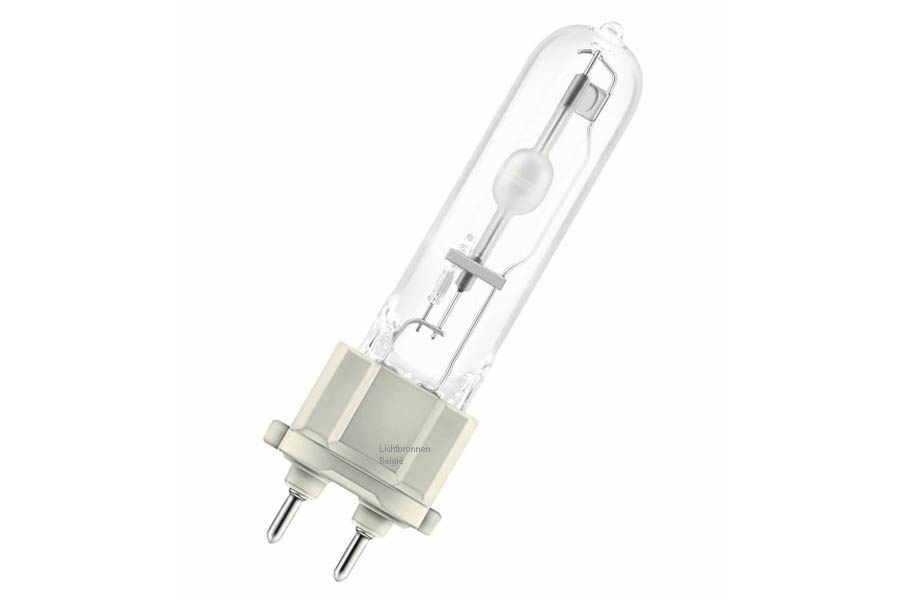

Osram HCI-T 70W/830 WDL

  • Beschrijving

Deze LEDlamp geeft warm wit licht

NIET MEER LEVERBAAR - Zie alternatief
NIET MEER LEVERBAAR - Zie alternatief Philips CDM-T 70W/830

Electrical data

Nominal wattage 70.00 W
Rated wattage 73.00 W
Lamp current 0.96000 A
PFC capacitor at 50 Hz 12 µF
Ignition voltage 3.6 / 5.0 kVp

Photometrical data

Luminous flux 7400 lm
Luminous efficacy 101 lm/W
Color rendering index Ra 89
Color temperature 3000 K
Light color 830
Rated LLMF at 2,000 h 0.85
Rated LLMF at 4,000 h 0.81
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.78
Rated LLMF at 12,000 h 0.75
UV protection Yes

Dimensions & weight

Diameter 20.0 mm
Length 100.0 mm
Light center length (LCL) 56.0 mm
Product weight 28.00 g

Temperatures

Maximum permitted outer bulb temperature 500 °C
Maximum permitted pinch temperature 350 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.97
Rated lamp survival factor at 8,000 h 0.96
Rated lamp survival factor at 12,000 h 0.80
Lifespan B50 15000 h
Operation mode LLMF/LSF ECG

Additional product data

Base (standard designation) G12
Design / version Clear
System guarantee level 3 (2/5)
Lamp mercury content 6.1 mg

Capabilities

Dimmable Yes
Burning position Any
Enclosed luminaire required Yes
Hot restart No

Certificates & standards

Energy efficiency class A+
Energy consumption 81 kWh/1000h

Country specific categorizations

ILCOS MT/UB-70/830-H/SL-G12-20/90
Osram
4008321678430
