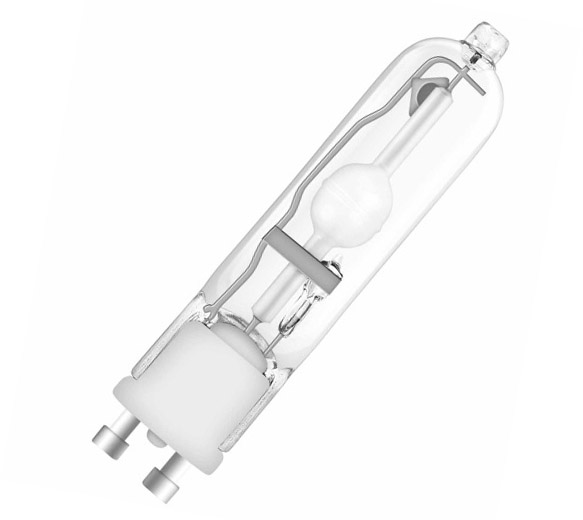

Osram HCI-TF 20W/830 WDL PB GU6.5
  • Beschrijving

Osram Powerball HCI-TF. Voorzien van GU6.5 fitting voor makkelijke plaatsing. Hoge lichtopbrengst en goede kleurweergave.

Voorzien van UV filter tegen verkleuring van producten.Verkijgbaar in 20 en 35W (niet uitwisselbaar in vermogen!)

Electrical data

Nominal wattage 20.00 W
Rated wattage 20.00 W
Lamp current 0.22 A
Ignition voltage 3.0 / 5.0 kVp

Photometrical data

Luminous flux 1700 lm
Luminous efficacy 85 lm/W
Color rendering index Ra 89
Color temperature 3000 K
Light color 830
Rated LLMF at 2,000 h 0.80
Rated LLMF at 4,000 h 0.75
Rated LLMF at 6,000 h 0.73
Rated LLMF at 8,000 h 0.70
Rated LLMF at 12,000 h 0.69
UV protection Yes

Dimensions & weight

Diameter 13.0 mm
Length 57.0 mm
Light center length (LCL) 30.0 mm
Product weight 8.00 g

Temperatures & operating conditions

Maximum permitted outer bulb temperature 380 °C
Maximum permitted pinch temperature 330 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.97
Rated lamp survival factor at 8,000 h 0.96
Rated lamp survival factor at 12,000 h 0.80
Lifespan B50 15000 h
Operation mode LLMF/LSF ECG

Additional product data

Base (standard designation) GU6.5
Product remark Only for operation with electronic control gear with 70…400 Hz square-wave current
System guarantee level 3 (2/5)
Mercury content 3.5 mg

Capabilities

Dimmable No
Burning position Any
Enclosed luminaire required Yes

Certificates & standards

Energy efficiency class A
Energy consumption 22 kWh/1000h

Country specific categorizations

ILCOS MT/UB-20/830-H/L-GU6.5-13.3/30
Osram
4008321683045
